Electric Single-girder Suspended Crane

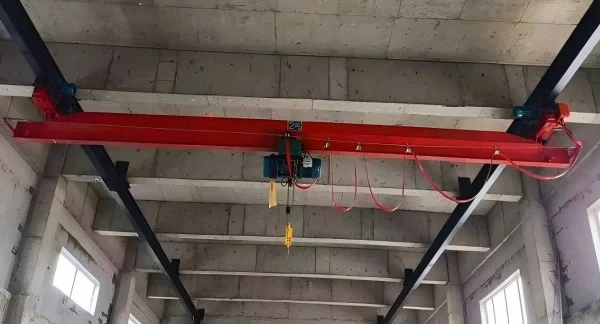

The electric single-girder suspended crane is a compact lifting device designed for environments with limited height and width. It features electric drive and operates on suspended rails, maximizing space utilization.

Send Inquiry

Product Introduction

Features

1. Electric Drive: Equipped with an electric motor and control system, providing stable power and precise, flexible operation.
2. Suspended Rail Operation: Runs on rails installed on building structures, enabling horizontal movement within large work areas.
3. High Space Utilization: Compact design allows efficient use of space in warehouses, factories, and workshops, especially in height-restricted areas.
4. Easy Operation: Advanced control systems simplify operation via control panels or remote controls, enhancing safety and efficiency.
5. Strong Adaptability: Customizable options include varying lifting capacities, speeds, and rail lengths to meet specific needs.

Technical Data
crane travelling meehanism	travelling speed m/min	20
	Power(kW)*Quantity	0.4x2,0.8x2
lifting machanism& fravelling mechanism	Running speed m/min	20		30
	Type	CD/MD	lifting height		6-30
	Lifting capacity(t)	1-20	Lifting speedm/min		8.7.3.5
working system		25%
electric eurrent		380V 50HZ
wheel diameter		φ134,φ154

Q	Span	Total weight	Max wheel load	Basic dimensions(mm)
t	S(m)	G(t)	Rmax	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
t	S(m)	G(t)	(kN)	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
1	3	0.87	6.9	893	455	213	1000	1500	750	410	260
	3.5	0.91	7
	4	0.94	7.1
	4.5	0.98	7.2
	5	1	7.3
	5.5	1.04	7.4
	6	1.08	7.5
	6.5	1.11	7.6
	7	1.14	7.7
	7.5	1.18	7.8
	8	1.21	7.9
	8.5	1.29	8.1				1500	2000
	9	1.32	8.2
	9.5	1.36	8.3
	10	1.39	8.4
	10.5	1.43	8.5
	11	1.46	8.6
	11.5	1.75	9.4
	12	1.79	9.5
	12.5	1.84	9.6				2000	2500
	13	1.92	9.8
	13.5	1.96	9.9
	14	2.01	10.1
	14.5	2.05	10.2
	15	2.1	10.3
	15.5	2.14	10.4
	16	2.19	10.5
	16.5	2.27	10.7				2500	3000
	17	2.32	10.8
	17.5	2.98	12.6		480
	18	3.04	12.8
	18.5	3.1	12.9
	19	3.16	13.1
	19.5	3.22	13.2
	20	3.32	13.5				3000	3500
	20.5	3.38	13.7
	21	3.44	13.8
	21.5	3.5	14
	22	3.56	14.1
	22.5	3.63	14.2

Q	Span	Total weight	Max wheel load	Basic dimensions (mm)
t	S(m)	G(t)	Rmax	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
t	S(m)	G(t)	(kN)	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
2	3	0.96	12.2	1010	455	213	1000	1500	750	440	270
	3.5	0.99	12.3
	4	1.02	12.4
	4.5	1.06	12.5
	5	1.1	12.6
	5.5	1.13	12.7
	6	1.16	12.8
	6.5	1.2	12.9
	7	1.23	13
	7.5	1.26	13.1
	8	1.3	13.2
	8.5	1.37	13.4				1500	2000
	9	1.4	13.5
	9.5	1.69	14.3
	10	1.74	14.4
	10.5	1.78	14.5
	11	1.83	14.6
	11.5	1.87	14.7		480
	12	1.95	15
	12.5	2	15.1				2000	2500
	13	2.04	15.2
	13.5	2.1	15.3
	14	2.14	15.4
	14.5	2.6	16.8		480
	15	2.7	16.9
	15.5	2.76	17.1
	16	2.83	17.2
	16.5	2.93	17.5				2500	3000
	17	2.99	17.7
	17.5	3.3	18.4
	18	3.38	18.6
	18.5	3.46	18.8
	19	3.54	18.9
	19.5	3.61	19.1
	20	3.73	19.5				3000	3500
	20.5	3.8	19.7
	21	3.88	19.9
	21.5	3.95	20.1
	22	4.03	20.3
	22.5	4.1	20.5

Q	Span	Total weight	Max wheel load	Basic dimensions (mm)
t	S(m)	G(t)	Rmax	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
t	S(m)	G(t)	(kN)	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
3	3	1.02	17.5	1156	455	213	1000	1500	750	440	280
	3.5	1.05	17.6
	4	1.08	17.7
	4.5	1.12	17.8
	5	1.16	17.9
	5.5	1.19	18
	6	1.22	18.1
	6.5	1.26	18.2
	7	1.29	18.3
	7.5	1.33	18.4
	8	1.57	19
	8.5	1.66	19.3				1500	2000
	9	1.7	19.4
	9.5	1.75	19.5
	10	1.79	19.6
	10.5	1.84	19.7
	11	1.88	19.8
	11.5	2.3	21		535
	12	2.36	21.1
	12.5	2.46	21.4				2000	2500
	13	2.53	21.6
	13.5	2.58	21.7
	14	2.65	21.8
	14.5	2.62	21.9		555				1000
	15	2.67	22
	15.5	2.72	22.1
	16	2.78	22.3
	16.5	2.88	22.6				2500	3000
	17	2.94	22.7
	17.5	3.18	23.3		590
	18	3.24	23.5
	18.5	3.3	23.6
	19	3.37	23.8
	19.5	3.43	24
	20	3.67	24.6				3000	3500
	20.5	3.75	24.8
	21	3.81	25
	21.5	3.87	25.1
	22	3.94	25.3
	22.5	4.01	25.5

Q	Span	Total weight	Max wheel load	Basic dimensions (mm)
t	S(m)	G(t)	Rmax	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
t	S(m)	G(t)	(kN)	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
5	3	1.44	28.8	1320	485	213	1000	1500	750	460	290
	3.5	1.49	28.9
	4	1.56	29.1
	4.5	1.62	29.2
	5	1.68	29.4
	5.5	1.74	29.6
	6	1.79	29.7
	6.5	1.86	29.9
	7	1.92	30
	7.5	1.97	30.2
	8	2.03	30.4
	8.5	2.22	30.8		535		1500	2000	1000
	9	2.27	30.9
	9.5	2.33	31.1
	10	2.39	31.3
	10.5	2.46	31.5
	11	2.52	31.7
	11.5	2.75	32.2		590
	12	2.81	32.4
	12.5	2.93	32.7				2000	2500
	13	3	32.9
	13.5	3.06	33
	14	3.13	33.2
	14.5	3.3	33.7
	15	3.38	33.9
	15.5	3.45	34.1
	16	3.52	34.3
	16.5	3.77	34.9			253	2500	3000
	17	3.85	35.1
	17.5	4.31	36.4		630
	18	4.39	36.6
	18.5	4.47	36.8
	19	4.57	37
	19.5	4.65	37.2
	20	4.91	37.9				3000	3500
	20.5	5.01	38.2
	21	5.09	38.4
	21.5	5.17	38.6
	22	5.25	38.8
	22.5	5.35	39.1

Q	Span	Total weight	Max wheel load	Basic dimensions (mm)
t	S(m)	G(t)	Rmax	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
t	S(m)	G(t)	(kN)	h	A	C	K	B	L	L1(H=9)	1.2(H=9)
10	3	2.15	55.6	XX	535	253	1000	1500	750	630	630
	3.5	2.21	55.7
	4	2.27	55.9
	4.5	2.34	56.1
	5	2.39	56.2
	5.5	2.45	56.4
	6	2.52	56.5
	6.5	2.58	56.7
	7	2.64	56.9
	7.5	2.7	57
	8	2.76	57.2
	8.5	3.08	58		590		1500	2000
	9	3.16	58.2						1000
	9.5	3.23	58.4
	10	3.29	58.6
	10.5	3.37	58.8
	11	3.45	59
	11.5	3.79	59.9		650
	12	3.87	60.1
	12.5	4.06	60.6				2000	2500
	13	4.14	60.8
	13.5	4.22	61
	14	4.3	61.2
	14.5	4.47	61.7
	15	4.55	61.9
	5.5	4.63	62.1
	16	4.72	62.3
	16.5	4.95	62.9				2500	3000
	17	5.03	63.1
	17.5	5.41	64.1		715
	18	5.5	64.4
	18.5	5.59	64.6
	19	5.7	64.9
	19.5	5.79	65.1
	20	6.51	67				3000	3500
	20.5	6.62	67.3
	21	6.74	67.6
	21.5	6.85	67.9
	22	6.95	68.2
	22.5	7.06	68.5

Application Scenarios

1. Industrial Production: Lifting and moving heavy workpieces using the electric single-girder suspended crane for raw materials and equipment handling.
2. Warehousing and Logistics: Handling loading, unloading, sorting, storing goods efficiently with the help of the electric single-girder suspended crane.
3. Construction: Transporting building materials using the electric single-girder suspended crane on construction sites for effective operations.
4. Maintenance and Repair: Lifting heavy components or tools safely with the assistance of the electric single-girder suspended crane.
